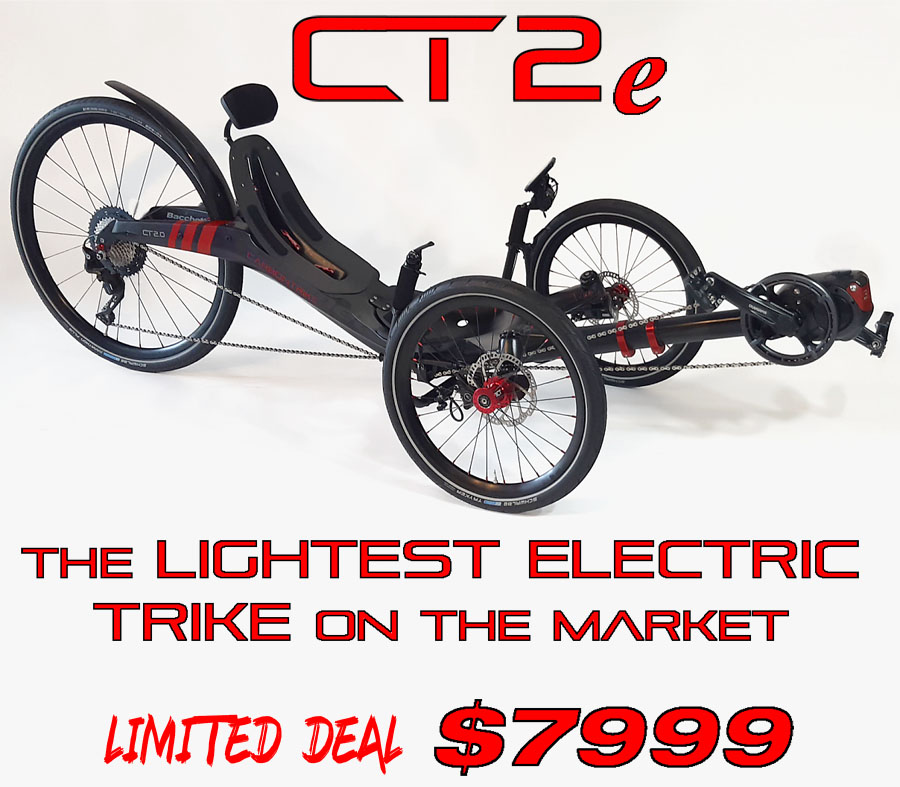

NEWS! CARBONTRIKE goes ELECTRIC!

We are building a limited number of electric CARBONTRIKES – order now to get the Lightest Electric Trike on the market and only Electric Carbon Trike in the World!

To order CT2e send an email to info@carbontrikes.com

CT2e is based on CT2.0 with added pedal assist electric system to ride longer, climb steeper and accelerate even faster.

CT2e is by far the lightest electric trike on the market – making a huge difference when you need to handle and transport the trike, like lift it into your vehicle. The low weight also makes the trike more fun to ride.

The carbon fiber mononocoque (one-piece) frame has passive suspension to effectively dampen road vibrations.

CT2e is aerodynamic makes you go longer on a single charge or let you decrease the assist and still ride fast. Even if it has assist it is still a true race trike – low, narrow, sporty and fun to ride!

CT2e has the best steering on the market – period!
Optimized for high speed but self-centering effect even at lower speed, 100% Ackerman compensation for minimum rolling resistance and tire wear and absolutely no brake steer or bump steer. And to make it perfect we laser align every CT2e leaving the factory.

CT2e share all innovative features with CT2.0 - handy storage space inside the frame, non-rotating boom and the seat integrated in the frame designed for active riding with tool free seat length adjustment - to fit perfect all riders!

CT2e has the motor beautifully integrated in the boom, all the cables hidden inside the frame and the battery behind the seat almost invisible – making CT2e the best looking electric trike ever!

PRICE

$7999 and no sales tax (online orders)

SHIPPING

Domestic (within USA): $350
No international shipping due to restrictions

GEOMETRY

Weight: 44lb (20kg) **

Total Length: Approx. 7' (215cm) *

Total Width: 29" (74cm)

Bracket Height: Approx. 15" (38cm) *

Seat Angle: 28° - optimized for speed both when it is flat with low air resistance and going uphill not suffering pedal power

Height: Approx 27" (70cm) *

Seat Height: 7" (18cm) without seat pad

Wheel Base: 47" (120cm)

Wheel Track: 27.5" (70cm)

Ground Clearance: 3.5" (9cm) - lowest possible but still work well in real traffic

Turning Circle: Approx. 19' (5,8m) outside to outside

Steering: Indirect, self centering, Ackerman compensated, fully eliminated brake steer and bump steer, optimized for high speed cycling, high precision laser aligned

Front Wheels: 20" (ETRTO 406mm)

Rear Wheel: 28" (ETRTO 622mm)

Max Tire Width: 1,75" (47mm)

Riders Length: 5'3"-6'5" (160-195cm) adjusted via boom and seat length

X-Seam: 37-48" (94-122cm)

Weight Limit: 250lb (110kg) ***

Gear Range: 26-110" (418%)

Storage Space in the Frame: Approx. 1gal (4l)

* Size adjusted for a 5"9' (175cm) rider

** The weight does not include seat pad, pedals, neck rest and other accessories. The weight can vary +/- 10%

*** The weight limit is more a size limit - large riders will not fit the trike; as a race trike it is rather narrow - the width between the handlebar grips is 19" (20,5" center to center)

FRAME & FRAME PARTS

Frame: CT2.0, full carbon, one-piece construction (monocoque), with integrated adjustable seat and storage space, with wing shaped design pointing ahead providing approx. 1/2" passive suspenstion to reduce road vibrations while makes it easier to get up and down from the trike

Seat: Integrated in the frame for minimum weight and maximum torsional stiffness, with adjustable backrest for riders length, optimized for active riding style, fast cornering and speed both on flat ground, going uphill and downhill

Handlebar: CT2.0, 6061-T6 aluminum one-piece construction

Boom: CT2e with integrated mount for the motor, full carbon, anti-rotation teardrop design, adjustable for riders length

Front Wheel Mounts: CT2.0, full carbon, with high strength 7075-T6 alu CNC axles

Rod Links: CT2.0, high strength 7075-T6 alu, with German made IGUS low weight maintenance-free composite and stainless rod ends

Aluminum Parts: High strength 7075-T6, CNC-machined, red and black anodized

Frame Color: Matte carbon with red or blue metallic stripes

COMPONENTS

Motor System: Shimano STEPS E-Bike system pedal assist crankset motor integrated in the boom, 250W 60Nm, silente, with integrated torque sensor for best possible cycling experience

Battery: Shimano STEPS E-Bike system, 504Wh, placed behind the seat

Controller: Shimano STEPS E-Bike system, bike computer with a large & easy-to-read 2.7-inch display, mounted on the handlebar, Bluetooth

Motor System Cables: All cable routing inside the frame

Rear Derailleur: Shimano XT M8000 SGS (long cage), DynaSys/Shadow+, 11 Spd, with integrated dampening for the long chain Upgradable to DI2

Shifters: Bar end shifter, Microshift 1x11 Spd. for Shimano Dyna Sys wide range gear Upgradable to DI2

Housing: Jagwire LEX-SL, routing inside the frame Upgradable to DI2

Crankarms: Shimano STEPS 170mm

Chainring: Shimano STEPS 44T with chain guide and protection

Cassette: 11 Spd, 11-46T (super wide range) with CNC alu lightweight spider

Chain: KMC X11, 11 Spd.

Idler: Alligt 15T, alu and glass fiber reinforced nylon, made in Holland

Headset: 3 x Tange Seiki, with machine bearings

Brakes: Hydraulic disc brakes, Tektro Gemini SL

Parking brake: Silicone rubber band

Rear wheel: CT2.0, Lightweight wheel optimized for trike use with assymetric 2:1 spoking with BCT red anodized lightweight hub with alu body & axle, lightweight semi aero Tubeless Ready rim, 24 reduced spokes, red alu nipples, BCT high strength titanium QR. The lightest 28" trike rear wheel on the market but still strong enought for training, racing, touring and everyday traffic

Front wheels: CT2.0, Lightweight wheels optimized for trike use with assymetric spoking with BCT red anodized hub with 25/15mm tampered 7075-T6 alu axle, lightweight Tubeless Ready rim, 28 reduced spokes, red alu nipples. The lightest 20" front trike wheel on the market but still strong enought for training, racing, touring and everyday traffic

Front Tires: Schwalbe Marathon Racer (20x1,5" / 406x40mm)

Rear Tire: Schwalbe Marathon Racer (28x1,5" / 622x40mm)

Tubes: Schwalbe

Seat pad: CT2.0, Spacer Fabric or Ventisit 3D Mesh
3 sizes:
Small for 5'3"-5'6" (160-169cm) riders
Medium for 5'7"-6' (170-183cm) riders
Large for 6'1"-6'5" (184-195cm) riders

Neckrest: BCT, 3D printed, fully adjustable without tools

Pedals: Dual function (SPD/Platform)

Safety parts: Mirrors, Flag, Tail lights

Practical Parts: Fenders, Bike computer mount, Bottle cages, Hydrations system (inside the frame), Brake Level Protections

Included Tools: All tools needed for assemly the trike including multi tool and mini pump in a Frame Bag

Special Tools: Trike hanger, Front Wheel Tool Set, Wheel Alignment Equipment

Warranty: 5 years warranty on the frame and all carbon fiber trike parts, 1 year on the motor system, for trikes with a valid Warranty Certificate and a hologram sticker on the frame proving it is assembled and laser aligned in USA, does not cover wear and tear or cosmetic defects

BENEFITS

100% CARBON
The ONLY electric trike on the market in 100% carbon fiber

MONOCOQUE
The ONLY electric trike on the market with one-piece frame without tubes contributing to the best looking trike in the world

LOW WEIGHT
Several pounds lighter than all other electric trikes on the market

DESIGNED FOR SPEED
Made for SPEED but still ridable in all conditions

PASSIVE SUSPENSION
Built into the carbon fiber frame effectively dampening road vibrations

AERODYNAMIC FRAME
Narrow profile and Naca profile wings

ADJUSTABLE SEAT LENGTH
The only trike on the market with tool-free seat length adjustment to fit all riders

STORAGE SPACE INSIDE THE FRAME
Place inside the frame for everything you need during the ride including a water bladder

ANTI-ROTATING BOOM
Unique tear-drop shaped boom

SUPER PRECISE STEERING
Self-centering effect independent of the speed and zero brake-steer or bump-steer

LASER ALIGNED STEERING
For lowest possible rolling resistance and minimum tire wear

SEAT DESIGNED FOR ACTIVE RIDING & FAST CORNERING
With foam pads keeping you in place while allowing the upper body to move freely and lean for super-fast and safe cornering

100% ACKERMAN COMPENSATION
Using computer simulation and testing with lasers for lowest possible rolling resistance and tire wear

CAMBER
The front wheels are leaning for faster cornering, higher stability, more narrow profile and higher speed

AUTOCLAVE
CARBONTRIKE is the only trike maker in the world using autoclaves - the world´s most advanced production normally only used in aeronautics and hyper cars

3D PRINTED PARTS
Most 3D-printed trike parts on the market in different plastics and rubbers optimized for each purpose. 3D printing is so flexible we continuously can develop new parts keeping your CARBONTRIKE updated

EUROPEAN DESIGN – AMERICAN BUILT
Designed in Sweden built in Florida by the world´s leading trike experts
